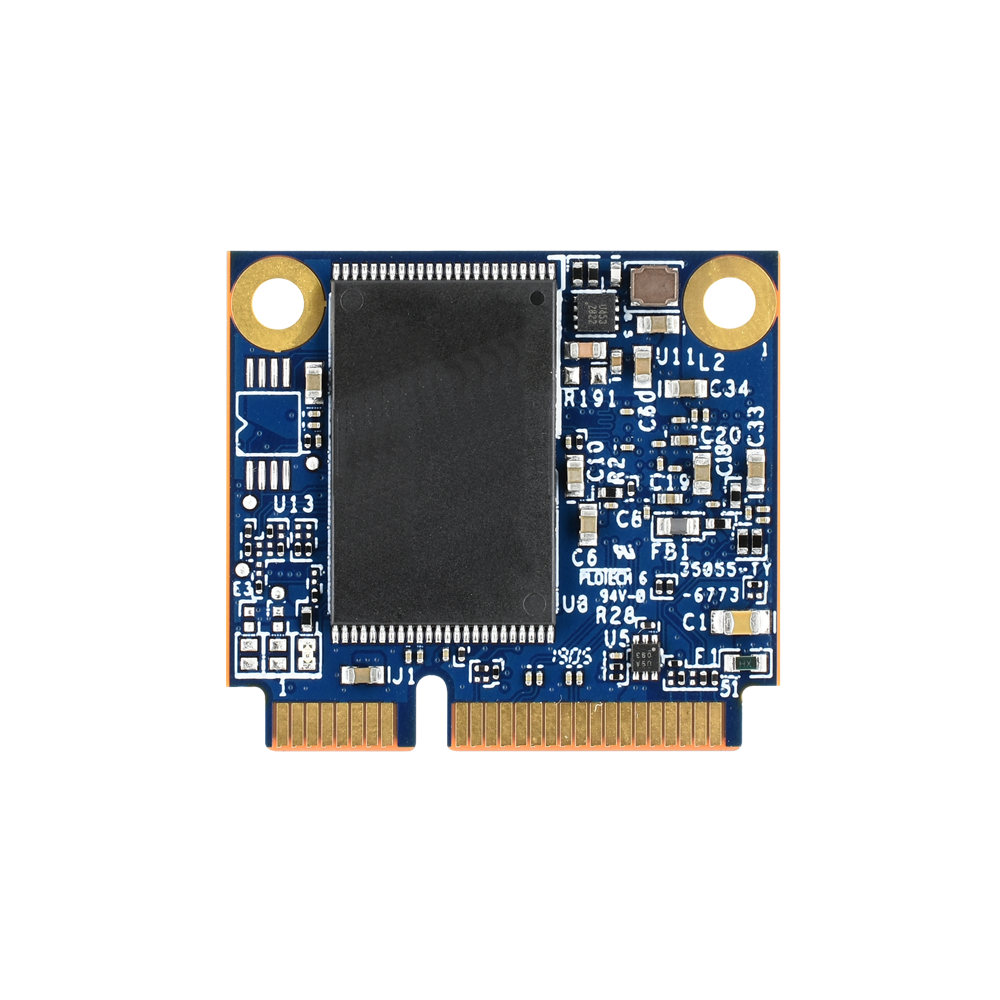

mini mSATA Flash Module

mini mSATA Flash Module

For even more portable designs, Fortasa offers Industrial mini mSATA SSD that fully conforms to the JEDEC MO-300B SSD specification standard in physical form (29.85 mm x 26.80 mm x 1.00 mm) and connector interface.

Technical Specifications

Fortasa mini mSATA A - SLC - Rev 1.5 Data Sheet Fortasa mini mSATA A - MLC - Rev 1.5 Data Sheet


Manufactured with either high reliability SLC NAND Flash or cost effective MLC NAND Flash components in both Standard (0 to 70°C) and Industrial (-40 to 85°C) Temperature grades. With capacity range from 4GB to 512GB and Read and Write performance of reaching 165/150 MB/sec. Fortasa's Industrial MO-300B mini mSATA modules can benefit any portable application where high reliability and smallest form factor are a must.


  • Perfect replacement of mSATA module
  • SLC and MLC NAND Memory Based Industrial SSDs
  • Standard (0 to 70°C) and Industrial (-40 to +85°C) Temperature Support
  • Advanced Wear-leveling and Block Management
  • Built-in HW ECC, Trim Command and S.M.A.R.T. Functions
  • Power Failure Prevention and Recovery
  • Thermal Sensor for Overheat protection
  • TBW Lifetime Estimate Available for Each SSD model and capacity
  • Quick Erase / Military Data Purge / Write Protection (Optional)
  • AES-256 Encryption, TPG Opal 2.0 (Optional)


Model Name A MLC
NAND Flash Type SLC A-M
Interface Type SATA 3 (6Gbit/sec)
Connector Type (7+15) pin male
Physical Dimensions (in mm) (29.85 x 26.80 x 3.95 (mm)
Capacities 2GB~32GB 8GB~128GB
Reliability Up to 40 bit correction per 1K bytes (BCH)
Sustained Read/Write Performance 65 / 60 (MB/sec) 280 / 180 (MB/sec)
Features Thermal Sensor
Optional Features AES Encryption / Write Protect Pin/Switch / Mil Purge
Standard Op Temp.(°C) 0 ~ + 70
Storage Temp.(°C) -40 ~ + 100
Extended Op Temp.(°C) -40~+85
Operating Voltage 5 V ± 5%
Shock 50G
Vibration 15G
Humidity 5% ~ 95%
