ATA DISK MODULE

ATA DISK MODULE

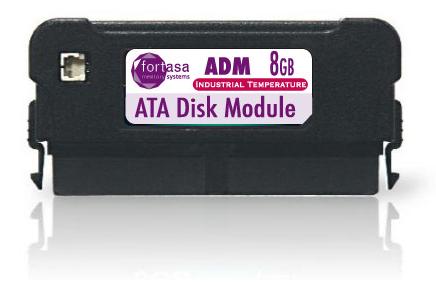

Commonly called a Disk On Module (DOM), Fortasa's ATA-Disk Module (ADM) is a small form factor embedded solid state drive (SSD) designed to replace a conventional IDE hard disk drive

Technical Specifications

ADM5 - ATA Disk Module 40 Pin / 180 Degree Rev 1.2 Data Sheet ADM5 - ATA Disk Module 44 Pin / 180 Degree Rev 1.4 Data Sheet

OVERVIEW

The ADM Module is easily plugged into a standard IDE 40 or 44-pin connector commonly found in desktops, set-top boxes, industrial PC and thin client systems. Fortasa's ADM contains an ATA/IDE Flash Controller and custom file management firmware that communicates directly with the host side ATA standard interface emulating a Hard Disk Drive. Considering the rapid decline of the Flash memory cost, the ADM is a most cost effective replacement of the legacy ATA/IDE HDDs.

This product is well suited for embedded flash storage applications offering new and expanded functionality as well as more cost-effective designs, better performance and increased reliability. Fortasa offers ATA Disk Modules that utilize highly reliable SLC and cost effective MLC NAND Flash. The ADMs are also offered in a variety of physical sizes and form factors. Please see our specification button to view the full technical comparison of the Fortasa ADM product offering.

FEATURES

  • Standard 40-pin/ 44-pin IDE female connector
  • Built-in HW ECC, Quick Erase and SMART Functions
  • Advanced Wear-leveling and Block Management
  • Power Failure Recovery
  • Secured Protection Zone (Optional)
  • Default SLC NAND Flash

SPECIFICATIONS

Model Name 40-pin (2.54mm pitch) 44-pin (2.00mm pitch)
Interface Type Standard ATA / IDE
Capacities 128MB~16GB
Transfer Mode PIO Mode-4 ; MWDMA Mode-2 UDMA Mode-4
Sustained Read/Write Performance standard:35/15 High Speed:35/25
ECC Support Up to 8 bit correction per 512bytes (BCH)
Industrial Op Temp.(°C) -40~+85
Standard Op Temp.(°C) 0~+70
Storage Temp.(°C) -40~+100
Low Power Consumption (3.3V/5.0V) Active mode (Typical): 85mA/100mA Sleep mode (Typical): 500/600µA
Shock 50G
Vibration 15G
Humidity 5% ~ 95%
MTBF (hours) > 2,000,000 hours
Security function •Write protection jumper (Optional) •Factory-programmed, up to 20-byte unique ID (Software Protect m
Product Types Standard, Low-profile, Housing
Orientation 90D, 180D, 270D
Certification CE, EN55022, CISPR22, EN55024, EN6100 FCC, Part 15 Class B, MIL-STD-810F, RoHS
