Fortasa's M.2 SATA Flash Module offers Industry Standard Bus Interface and Commonly used Form Factor.
Technical Specifications
M.2 A1 SATA 3 2242 SLC Flash Module rev 1.0 Final
M.2 A1 SATA 3 2280 SLC Flash Module rev 1.0 Final
M.2 A1-M SATA 3 2242 MLC Flash Module rev 1.0 Final
M.2 A1-M SATA 3 2280 MLC Flash Module rev 1.0 Final
M.2 A-D SATA 3 2280 3D Flash Module rev 1.6 Final
M.2 High Capacity SATA 3 2280 3D Flash Module rev 1.2a Final
OVERVIEW

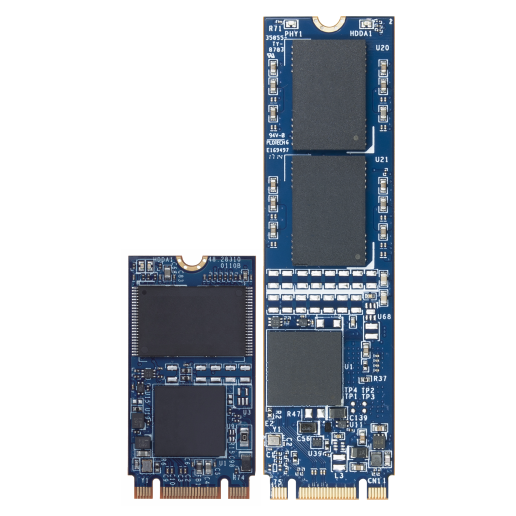

M.2 interface has been designed to accommodate device signals for the following common computer busses: PCI Express 3.0 (up to four lanes), Serial ATA 3.0, and USB 3.0 (a single logical port for each of the latter two). M.2 Flash Module Form Factor replaces a conventional mSATA (MO-300) module. Fortasa Memory Systems, Inc. offers M.2 Flash Memory Modules for SATA and PCIe interfaces.
Fortasa's Industrial M.2 SATA Flash Memory Modules are manufactured with either high reliability SLC NAND Flash, cost effective MLC NAND Flash or the newest 3D TLC NAND Flash components in both Standard (0 to 70°C) and Industrial (-40°C to 85°C) Temperature grades.. With capacity range from 8GB to 1TB and Read and Write performance of over 500MB/sec. Fortasa's Industrial M.2 SATA modules can benefit any embedded application where high reliability or extreme environmental conditions are a must.
Offered in a standard 42mm and 80mm module lengths, the Fortasa M.2 SATA memory modules are the perfect solution for your most critical storage needs.
FEATURES
SPECIFICATIONS
| Model Name | A1 M.2 2242 SATA | A1-M M.2 2242 SATA | A1 M.2 2280 SATA | A1-M M.2 2280 SATA | M.2 A-D |
| NAND Flash Type | SLC | MLC | SLC | MLC | 3D NAND BICS3 TLC |
| Interface Type | SATA 3 (6Gbit/sec) | ||||
| Connector Type | 75-pin SATA Based M.2 module pin-out | ||||
| Physical Dimensions (in mm) | 42.00 x 22.00 x 3.60 | 42.00 x 22.00 x 3.80 | 80.00 x 22.00 x 1.50 | 80.00 x 22.00 x 2.33 80.00 x 22.00 x 3.58 |
80.00 x 22.00 x 2.30 |
| Capacities | 1GB~64GB | 8GB~256GB | 16GB~32GB | 32GB~1TB | 30GB~1960GB |
| Sustained Read/Write Performance | 520 / 455 (MB/sec) | 480 / 460 (MB/sec) | 530 / 245 (MB/sec) | 480 / 490 (MB/sec) | 550 / 500 (MB/sec |
| ECC Support | Up to 40 bit correction per 1K bytes (BCH) | Up to 40 bit correction per 1K bytes (BCH) | Up to 40 bit correction per 1K bytes (BCH) | Up to 40 bit correction per 1K bytes (BCH) | LDPC based ECC algorithm |
| Industrial Op Temp.(°C) | -40~+85 | ||||
| Standard Op Temp.(°C) | 0 ~ + 70 | ||||
| Storage Temp.(°C) | -40 ~ + 100 | ||||
| Operating Voltage | 3.3 V ± 5% | ||||
| Shock | 50G | ||||
| Vibration | 15G | ||||
| Humidity | 5% ~ 95% | ||||
